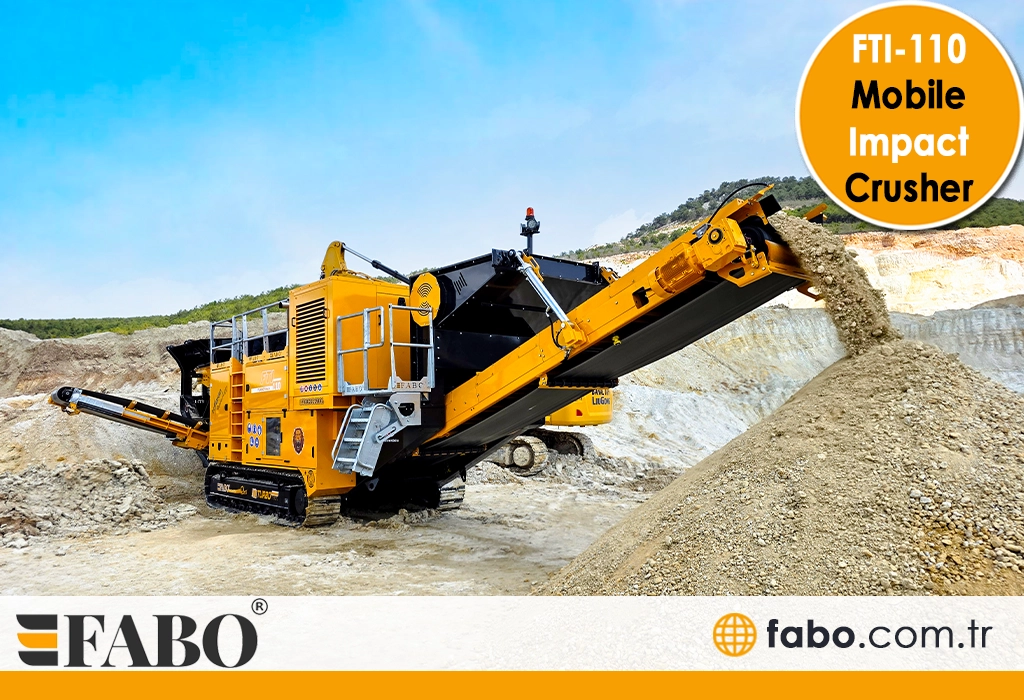

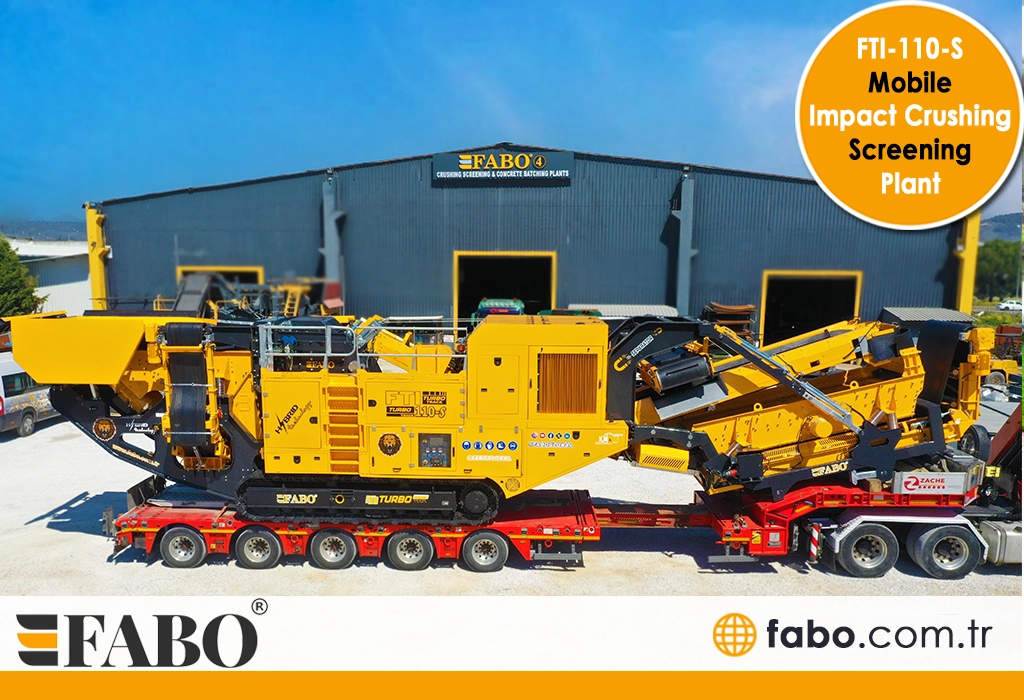

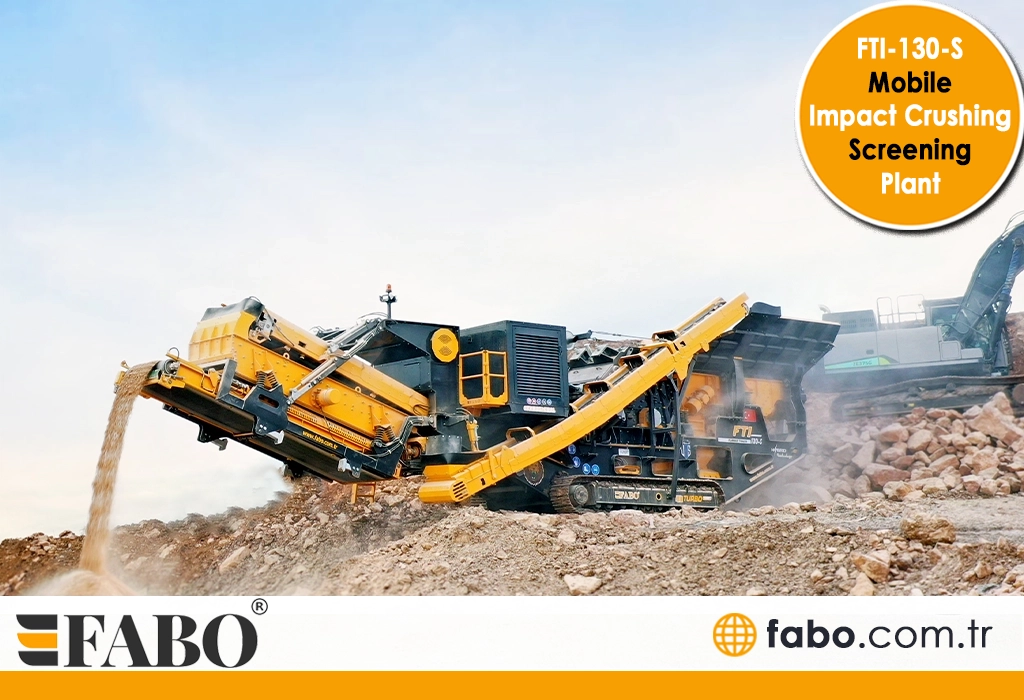

FTI Series Tracked Impact Crusher

Turbomix-60	TEKNİK DETAYLAR	Turbomix-60	TEKNİK DETAYLAR	FTV-90-S	FTI-130-S
Model	FTI-80	FTI-110	FTI-110-S	FTI-130	FTI-130-S
CRUSHER TYPE	IMPACT CRUSHER	IMPACT CRUSHER	IMPACT CRUSHER	IMPACT CRUSHER	IMPACT CRUSHER
PRODUCTION CAPACITY	70-150 T/S	200-240 T/S	200-240 T/S	400-450 T/S	400-450 T/S
FEEDING DIMENSION	Ø 650x860 mm	Ø 1000x1000 mm	Ø 1000x1000 mm	Ø 1270x1200 mm	Ø 1270x1200 mm
CSS SETTING	0-50 mm	0-50 mm	0-50 mm	0-50 mm	0-50 mm
DIMENSIONS	2650x3200x10000 mm	2650x3200x10000 mm	2900x3180x14760 mm	3000x3800x14700 mm	3000x3800x14700 mm
MAX.FEEDING	500 mm	600 mm	600 mm	750 mm	750 mm
TOTAL POWER	215 kVA	360 kVA	360 kVA	550 kVA	550 kVA
WEIGHT	24.000 Kg	35.000 Kg	40.000 Kg	52.000 Kg	63.000 Kg
