|Turbomix-60||TEKNİK DETAYLAR||Turbomix-60||TEKNİK DETAYLAR|
|PRODUCTION CAPACITY||150-350 TPH||TOTAL POWER||345kvA|
|FEEDING DIMENSION||Ø 1300x1275 mm||WEIGHT||49000Kg|
|CSS SETTING||0-70mm||DIMENSIONS||3200x14700x3800 mm|

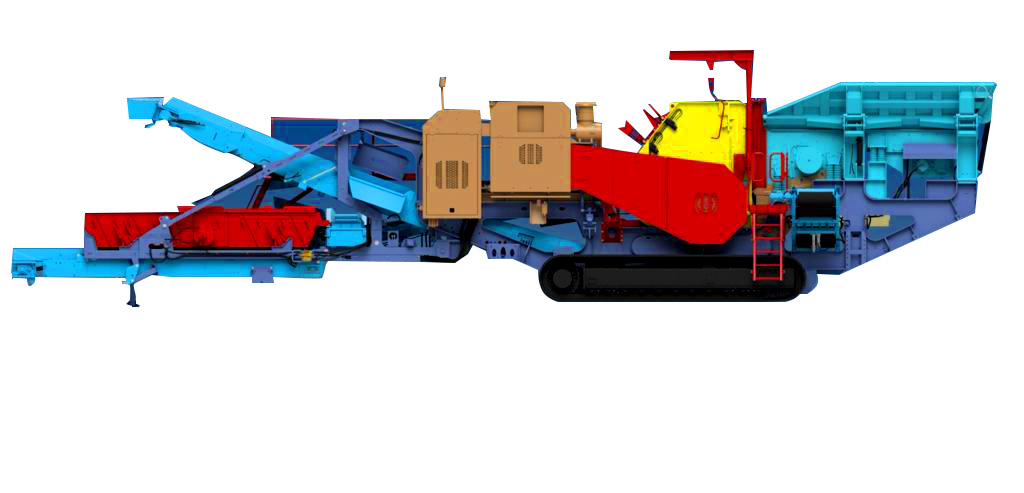

FTI-125 Tracked Impact Crusher
FTI-125 Tracked Impact Crusher; The feeding hopper is produced in the form of generator jaw crusher and with stock conveyor belts. The FTI-125 Tracked Impact Crusher, which is moved with a remote control on a steel crawler, successfully completes all the commands given by the user by moving on its crawlers in all harsh climatic conditions and rough terrain. The FTI-125 Tracked Impact Crusher is delicately designed and carefully manufactured for crushing stone and it is the leading crawler crusher plant in the industry with its weight of 49000 kg and a crushing capacity of 150-350 T/H per hour.
Eliminates Infrastructure Requirement
FTI-125 Tracked Impact Crusher does not require an extra infrastructure as a production method, it is moved by remote control and adapts to all difficult terrain conditions.
Vibrating Feeder Bunker
It has been developed by our Engineers as a User-Oriented Crusher, Positioned on the FABO Vibrating Feeder Bunkers, to operate with high level efficiency.
The vibration speed of the Fabo Vibrating Feeder Bunkers, which are easily guided by the Automation System, can be adjusted manually. This feature prevents the bunker from wearing out and provides the user with longer and more efficient use.
It is adjusted according to the weight of the product loaded on it, and it vibrates less in light loads and more in heavy loads, thus reducing energy and maintenance costs.
Ease of maintenance and adjustment is one of the most important advantages of this type of breakers. The hydraulic body opening system, external adjustment of the crusher plates, easy pallet and lining replacement enable this type of crusher to be used easily in construction site conditions.
Primary Impact Crusher
FABO primary impact crushers are designed to crush soft and medium hard stones with high rotor speed. It is considered as the heart of the mobile system it is on. It ensures that all parts on the chassis work in harmony with each other, FABO quality, and wide warranty coverage, provides confidence and customer satisfaction with its 24/7 accessible support line.
With the help of high-speed rotating rotor breaking bars, the products poured from the feeder are crushed with the help of pallets. Hydraulically adjustable rods allow the products to be obtained in the desired size.
Liners and pallets prevent wear of the FABO primary impact crusher and offer a long service life. Protective linings can be easily replaced. And the service life can be increased by changing the direction of the pallets
Interior view of the Primary Impact Crusher
|1- Crusher Pallets|
|2- Crusher Rotor|
|3- Pallet Holder Lock|
|4- Crusher Lower Pendulum|
|5- Pendulum Shaft|
|6- Pendulum Adjustment Mechanism|
|7-Crusher Upper Pendulum|
Stock and Return Bands
With its foldable structure, it minimizes the dimensions of the machine it is on. Optionally, the number and length of tapes can be increased upon the request of the user.
10 mm EP 125 4-ply Band elastics, moving on 4mm st 37 Twisted Sheet, perfectly transport the aggregate coming out of the sieve to the area desired by the user in the most efficient way. The band tires, which are produced resistant to wear, will never let you down and offer a long service life.
Automatic Lubrication System (Optional)
The Automatic Lubrication System is the system in charge of sending the grease that is reduced during the use of the crushing plant and needs maintenance to the relevant part.
It distributes the grease evenly to all components of the mobile crusher that needs lubrication and provides perfect lubrication.
The automatic lubrication system, which provides great ease of maintenance, finishes the lubrication process in seconds without the need for manpower. It allows to use the Mobile Crusher Plant in the most efficient way.
It uses the amount of oil in the most ideal way during lubrication and minimizes the maintenance cost of the user.
FTI-125 Tracked Crushing is controlled by a full automation system. Thanks to the automation system panel on the machine, the working mode of the machine is adjusted. The working principle of the machine can be easily adjusted according to the shape of the material loaded by the user into the vibrating hopper. Many features such as Crusher Rotor Speed, (Optional) Bunker Vibration Speed, can be adjusted with the automation system.
The automation system, created by Fabo engineers, has been put at the disposal of its users in its most up-to-date form, taking into account all the tests performed from production to delivery.
It offers the opportunity to control the machine from anywhere in the world by using the remote connection feature with internet connection.
The automation system that allows you to use the Mobile Crushing and Screening Plant in the most efficient way has been prepared with PLC and serves its users with the most advanced state of technology.
The entire energy source of the FTI-125 Tracked Impact Crusher is provided by the generator. The generator power and the energy consumption of the crusher are calculated in harmony with each other and maximum energy time is provided in a single filling.
The basic element that enables the FTI-125 Tracked Impact Crusher to move is the crawler system. Crawlers carry the entire weight of the crusher. FABO, which does not ignore the importance of the crawler system on the crushing plant, has carried out various R&D studies and has revealed the crawler system that provides maximum durability, low maintenance cost and long years of service to its user in accordance with A1 Quality CE standards.
FTI-125 Tracked Impact Crusher is transported on the lowbed with the help of a truck head. It is moved by remote control and positioned on the lowbed without the need for manpower on the crawlers.
FTI-125 Tracked Impact Crusher takes the transport position within 5 minutes, saves our customers time and prevents surface wear that may occur during transportation.
